Rig on a Board Prototype

This is a first cut at a removable mount for my VHF/UHF rig. Until now, the radio has been sitting on the passenger seat, but that is far from ideal. So I put together something simple that holds the rig steady and puts the display and controls at a better angle.

One end of the hinged board goes between the seat and the center console. The other end holds the radio. The power cable is dressed with a velcro tie behind the radio.

Rig on a board 4

I grabbed a scrap board (I think it is pre-painted house siding), sawed it into two chunks, installed a hinge in the middle, and mounted the radio bracket on one side. I screwed down a velcro cable wrap to keep the excess power cable from flopping around.

Rig on a board 2

So far, I like it a lot. I need to figure out a bracket to hang the hand mic, though.

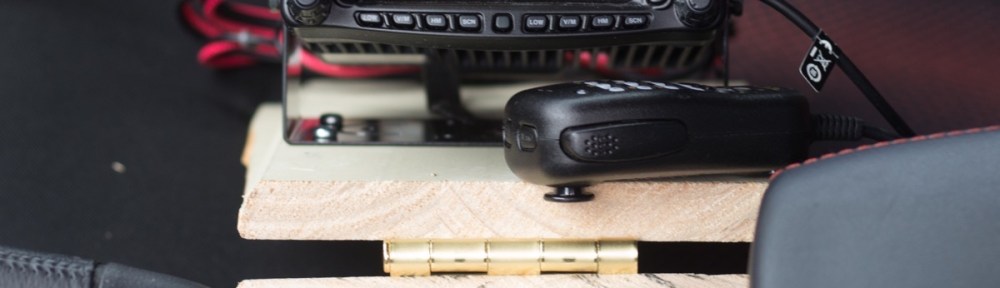

Rig on a board 3

I’ll probably modify this a bit more before rebuilding it with a nicer piece of wood. I was thinking of securing it to the seat back with a strap, but it seems pretty secure as it is.

Advertisements

2 thoughts on “Rig on a Board Prototype

  1. Neat and a good improvisation. I have the same issue, I place my 2m rig on the passenger seat. I don’t fancy drilling mounting holes in the center console. Thanks for sharing. 🙂
